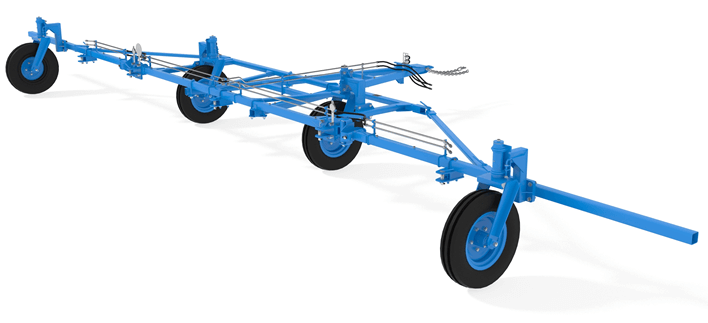

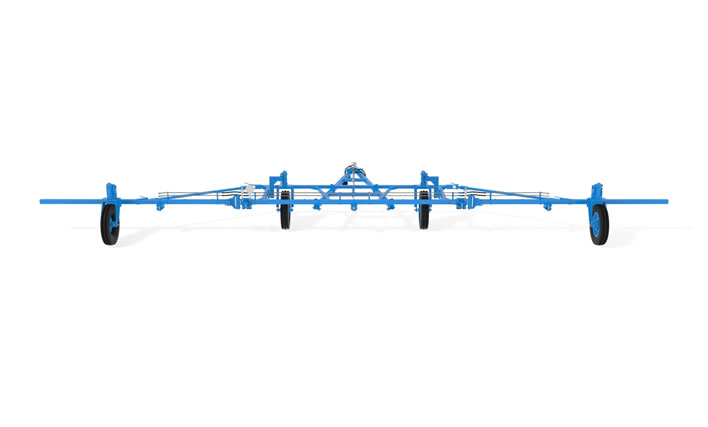

Universal trail coupling SPU-11^new

Price request

Marker device UM-11

The coupling is intended for connecting tractor hydraulic and non-hydraulic wide-cut units for preplanting soil cultivation, fallow land treatment, grain and leguminous crops seeding and other agricultural works.

The coupling can be connected with three types of SZP-3.6 sowing machines (with marker unit UM-11), two rippers KPS-4, three rippers KSh-3.6 and other trailed agricultural machines with width and traction resistance similar or close to the specified ones.

Technical Parameters

Coupling method	прицепной
Performance per hour of operation, hectare/h)
— during sowing	up to 10
— during cultivation	up to 8
— during harrowing	up to 12
Operating speed, km/h	up to 15
Operating cut width, m, не менее
— during sowing	10,8
— during cultivation	8
— during harrowing	12
Transport speed, km/h, не более	up to 15
Constructive coupling weight, kg	786
Including weight of harrow dragbars	56
Overall coupling dimensions (in operative position), mm:
— width	11744±352
— length	4187±125
— height	1123±35
Service life, years	8

Compatibility

Drawbar category of a coupled tractor – 3-4 depending on unit composition.

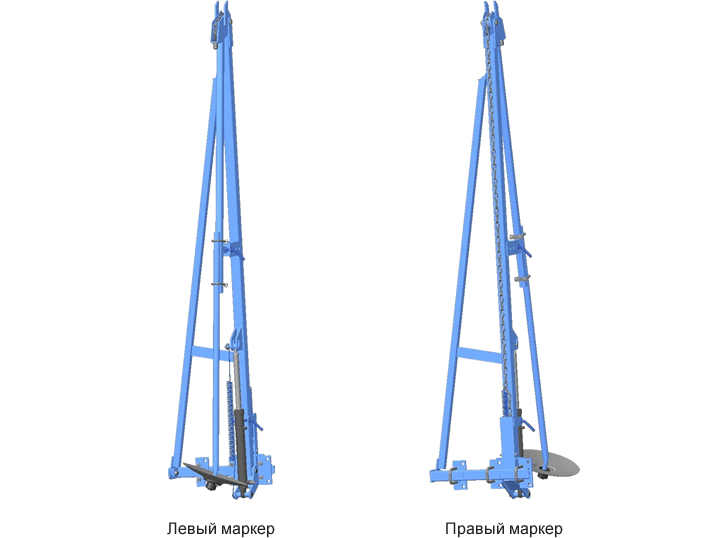

Marker device UM-11

The marker device UM-11 is designed to form a well-visible trace (furrow) parallel to the movement of the unit, which ensures the constancy of the size of the guess row spacing and the straightness of the subsequent movement of the unit.

The device SPU-11 can be used as component of a unit made of SPU-11 coupling and three sowing machines: SZP-3.6А; SZP-3.6А-01. It is purchased separately.

It is designed for use in any agro-climatic zone on all types of soil, except rocky soils.

Min marker spread, mm	4200±20
Max marker spread, mm	5400±20
The distance from the tractor wheel to the marker disc trace in the furrow (depending on the seeding unit cut width), mm	4200 … 5400
Height, мм	2884±20
Weight, kg	178±5
