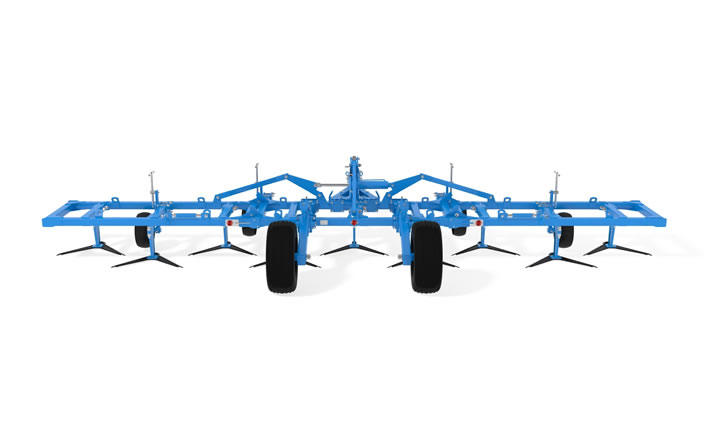

3D model
Photos, Videos
Testimonials

Subsurface tiller STAVRIS KPSh-9

Wide-cut subsurface tiller KPSh-9 is designed for fallow and autumn tillage, as well as preplanting cultivation of soils that are light in texture, with maximum preservation of stubble and other crop residues on the field surface after cereal and hoed forecrops.

Preservation of stubble prevents soil aeolation, which is important for steppe regions and areas with insufficient moisture.

Compatibility

300…350 hp.

KIROVETS К-744Р1, KIROVETS К-744Р2 "Standart", KIROVETS К-744Р2 "Premium"John Deere, К-744Р3, Series 8, Case Magnum 340, Claas Axion 940 etc.

Technical Parameters

Наименование показателей	Значение
Тип машины	полуприцепной
Performance per hour of operation, hectare/h)	up to 8,2
Operating speed, km/h	up to 10
Tilling depth, cm	7…18
Конструктивная ширина захвата, не менее, м	8,2
Расстояние от опорной плоскости рабочих органов до нижней плоскости рамы, мм	560±10
Number of tools, pcs	9
Constructive plow weight, kg	2200±66
Габаритные размеры культиватора в рабочем положении, мм
– length	4920±148
– width	8960±270
– height	1620±48
Service life, years	8

Advantages of the STAVRIS KPSh-9 Cultivator-Subsurface Plow

Soil protection against wind erosion.
Fast transition into working position and back.
High maneuverability.
Backwards maneuvering in transit position.
Ideal for steppe areas with insufficient or unstable moistening.
Tillage with maximum preservation of stubble and other harvesting remains on the field.
Optimized operating width of 8.2 m.
Performance of up to 100 ha per day.
