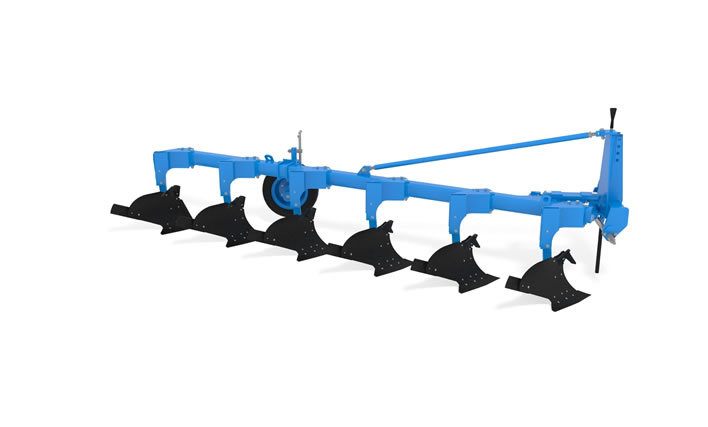

3D model
Photos, Videos
Testimonials

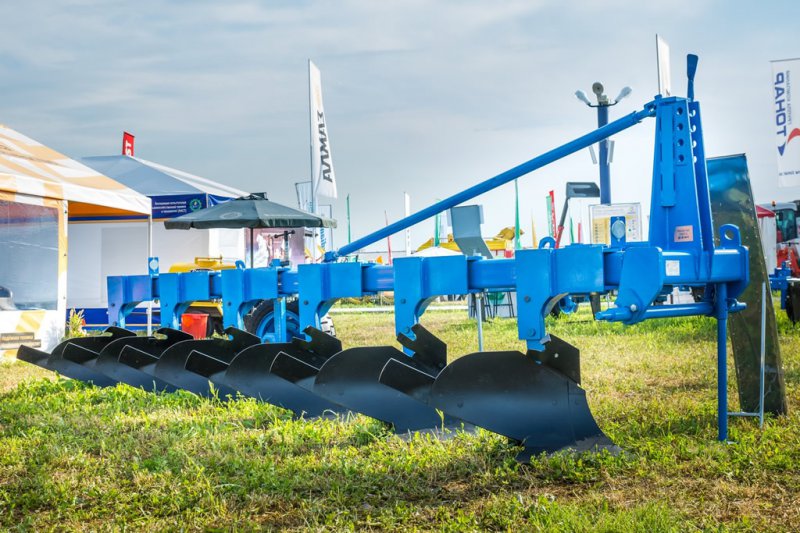

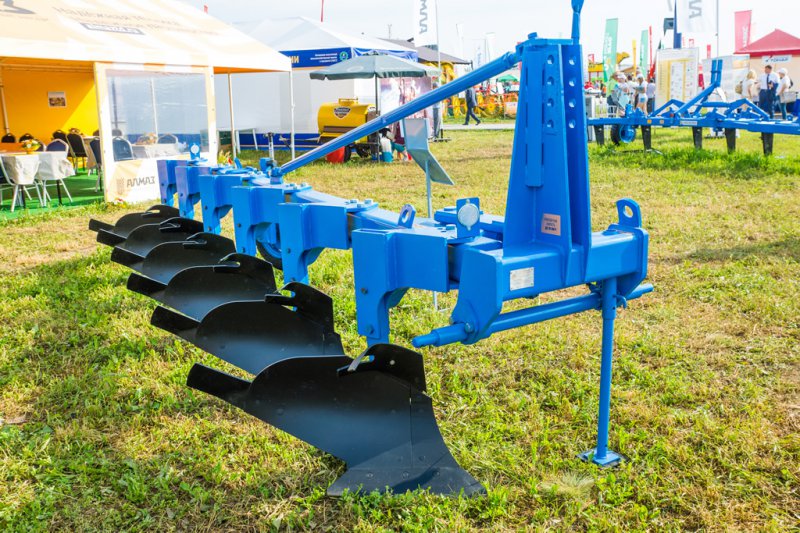

Mounted variable width plow FINIST PLNR-6x40

Mounted variable width plow FINIST PLNR-6×40 is designed for plowing soils with specific resistance of 0.9 kg/cm² (0.09 MPa), hardness up to 30 kg/cm² (3.0 MPa) and humidity up to 22% that are not littered with stones, flagstone and other obstacles, to a depth of 30 cm for grain and industrial crops.

Technical Parameters

Coupling method	навесной
Performance per hour of operation, hectare/h)	up to 2,7
Operating speed, km/h	up to 10
Cut width, m	2,1-2,7
Weight, kg	1260
Tilling depth, cm	20…30
Расстояние от опорной плоскости корпусов до нижней плоскости рамы, мм	750
Габаритные размеры плуга в рабочем положении, мм:
длина	5550
ширина	2905
высота	1630
Width захвата корпуса, мм	350; 400; 450
Number of bodies, pcs.	6
Service life, years	8

Compatibility

220-260 hp:

KIROVETS К-424, МТЗ-2022, МТЗ-2522, John Deere of Series 7, New Holland of Series 7 etc.

Advantages of the FINIST PLNR Share Plows

Clogging with crop residues is excluded. High stilt, plow bodies moved to the right from under the frame.
Adjustable width of each body. Step-wise adjustable width (35, 40, 45 cm).
A shear bolt protects the tools from any damage.
Equipped with fins which perform the function of a coulter and put the soil layer to the bottom of the furrow.
Wear resistance of tools. All parts are made of high strength steel. Advanced tool heat treatment technology.
