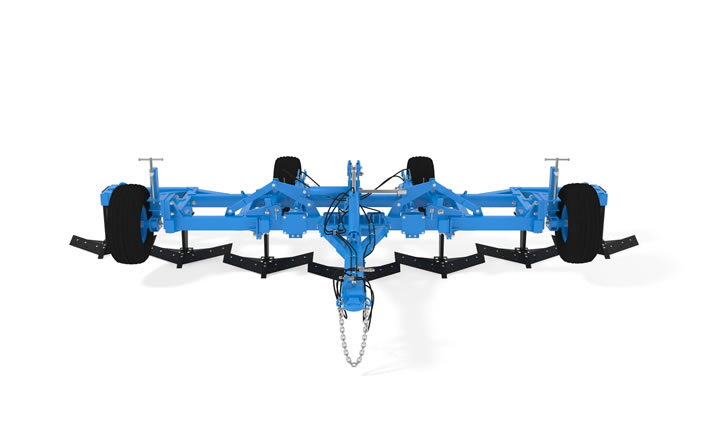

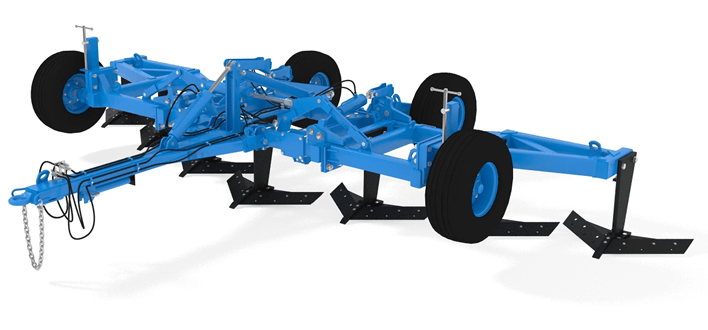

Subsurface plow STAVR PGP-7

Subsurface plow STAVR PG-7 is designed for primary cultivation of fallow lands, autumn tillage with maximum preservation of stubble and other crop residues on the field surface after cereal and hoed forecrops in order to prevent soil aeolation.

The STAVR PGP-7 plow completely cuts up weed roots to a depth of 15-30 cm, so that the stubble remaining on the field surface retains the snow and protects the soil from blowing and washing away, facilitates moisture accumulation.

Basic technical parameters

Coupling method	Полуприцепной
Performance per hour of operation, hectare/h)	7,4
Tilling depth, cm	15…30
Operating speed, km/h	up to 10
Cut width, m	7,4
Габаритные размеры, мм
Length	5100±153
Width	7400±222
Height	1400±42
Number of tools, pcs
– левых	4
– правых	3
Weight, kg	2900
Service life, years	8

Compatibility

380…450 hp.

KIROVETS К-744Р2 "Standart", KIROVETS К-744Р2 "Premium", К-744Р4, KIROVETS К-744Р3 "Standart", KIROVETS К-744Р3 "Premium", KIROVETS К-744Р4 "Standart", KIROVETS К-744Р4 "Premium",Case-450, John Deere 9420 etc.

Гидроцилиндр на дышле обеспечивает полное копирование рельефа и постоянную глубину обработки почвы
Tools consisting of two angled plowshares and chisels perform complete weeding and loosen the soil with a maximum stubble preservation.. Soil protection against wind erosion (thanks to snow retention).
Adjustable tool. Adjustable approach (drift) angle while working on solid soils.
Plowshares and chisels are coated with hard alloy to improve wear resistance.
Удобная транспортировка. Переводится в транспортное положение с помощью гидравлической системы
Simple design and adjustment.
Агрегатируется с таркторами с прицепной серьгой, имеет 2 вида навески: 1) для тракторов К-744 2) для импортных тракторов
