Reversible plow PERESVET PON 4 ^new!

Description
Features

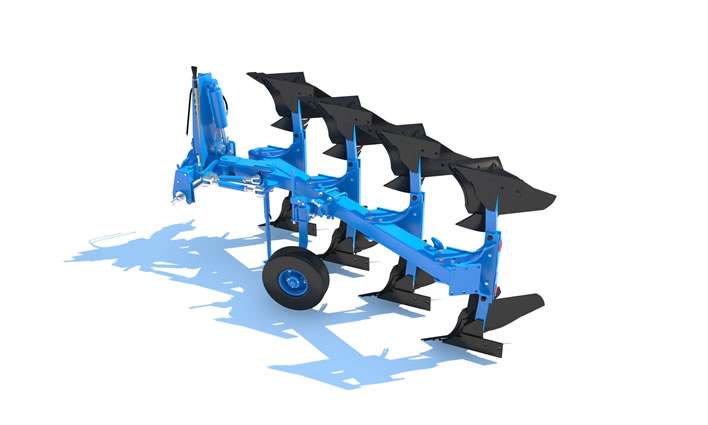

3D model
Photos, Videos
Testimonials

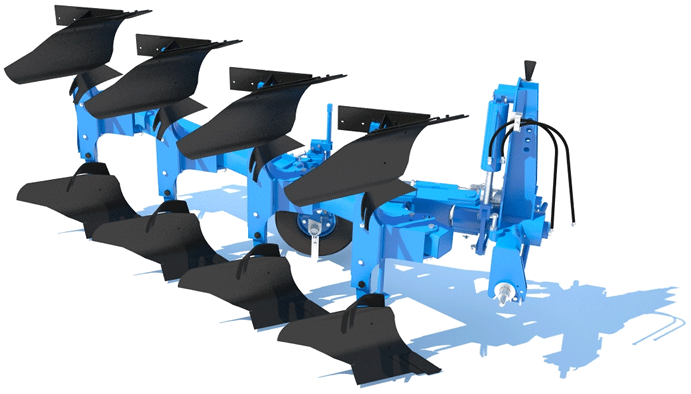

Reversible plow PERESVET PON 4

The plow is designed for plowing soils free of stones, flagstones and other obstacles, to a depth of 30 cm, for grain, industrial and vegetable crops.

Technical Parameters

Coupling method	навесной
Performance per hour of operation, hectare/h)	1,08; 1,26; 1,44
Operating speed, km/h	up to 9
Cut width, m	1,2; 1,4; 1,6
Weight, kg	1260±3%
Tilling depth, cm	up to 30
Overall dimensions (in operative position), mm
Length	3600±110
Width	2050±60
Height	1650±50
Underframe clearance (left-hand and right-hand bodies), mm	750±10
Number of tools, pcs	8
Service life, years	8

Soil cultivation quality indicators

Soil surface ridgeness, not more than (cm)	3…5
Качество крошения пласта (фракции размером до 5 см), %	71…75
Заделка растительных и пожнивных остатков, %	90

Compatibility

130-155 hp:

MTZ-1221, MTZ-1523, KhTZЗ-150К-09, KhTZ-17221-09, John Deere 6930 SE

Attention!

Soil characteristics: Specific resistance up to 0.09 MPa (0.9 kg/cm²), hardness up to 3.0 MPa (30kg/cm²), maximum humidity up to 22%, slope up to 8 grades.

Advantages of PERESVET Reversible Plows

Adjustable width of each body. Can be increased from 300 to 400 mm by turning the housing supports.
Modular tools. Replacement of a worn part of the tool instead of the whole tool..
Equipped with fins which perform the function of a coulter and put the soil layer to the bottom of the furrow. The result is a deep and full incorporation of weeds, vegetable and crop residues and layer crumbling.
The reversible plow design saves up to 30% of fuel and time spent on breaking up the stints. No idle runs.
No clogging with vegetable and crop residues. The clearance between the body and the frame is increased from 680 mm to 750 mm.
Improved support wheel mounting. Excludes dynamic shocks when turning the plow.
Durable and reliable design. Frame tube cross-section is increased up to 10 mm. Advanced tool heat treatment technology.
A shear bolt protects the tools from any damage.
Durable and ruggedized polymer coating, high-quality welds.
