Mounted plow FINIST PLN 4-35

Description
Features

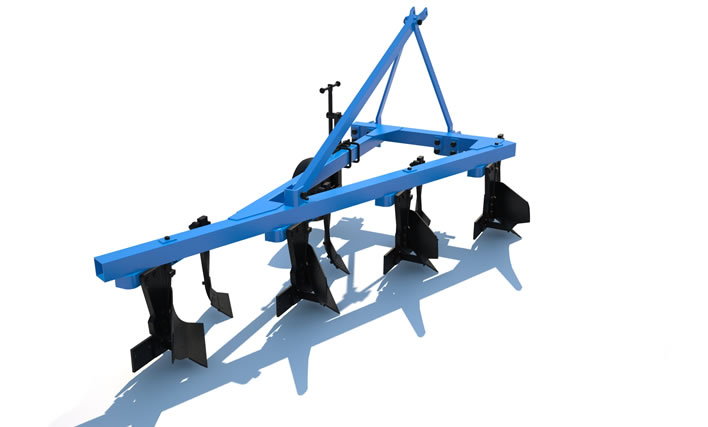

3D model
Photos, Videos
Testimonials

Technical Parameters

Coupling method	навесной
Performance per hour of operation, hectare/h)	up to 1,26
Operating speed, km/h	up to 9
Cut width, m	1,4
Weight, kg	668±3%
Tilling depth, cm	up to 30
Overall dimensions (in operative position), mm
Length	3530
Width	1720
Height	1525
Distance from the base plane to the lower plane of the frame, not less, mm	620
Number of tools, pcs	4
Colter treatment depth, cm	up to 12
Service life, years	8

Compatibility

130-150 hp.

MTZ 1221, Т-150

Attention!

Soil Requirements: soils free of stones, flagstone and other obstacles, having a specific resistance up to 0.12 MPa (1.2 kg/cm²), hardness up to 4 MPa (40 kg/cm²) and humidity up to 22%.

Advantages of the FINIST Share Plows

Polymer coating, resistant to environmental loads.
Wear resistance of tools. All parts are made of high strength steel.
Durable assembly. Possibility to replace worn parts only.
The coulter cuts a layer of soil and turns it over, dropping it to the bottom of the previous furrow. The result is a deep and full incorporation of weeds, vegetable and crop residues and crumbling of the bank.
Can be supplied with cast stands and a shoe.
Универсальная навеска для тракторов с традиционной и европейской навеской, в т.ч. МТЗ.
Components are provided by the original manufacturer.
Reliable time-tested design. Simple assembly, operation and maintenance.
