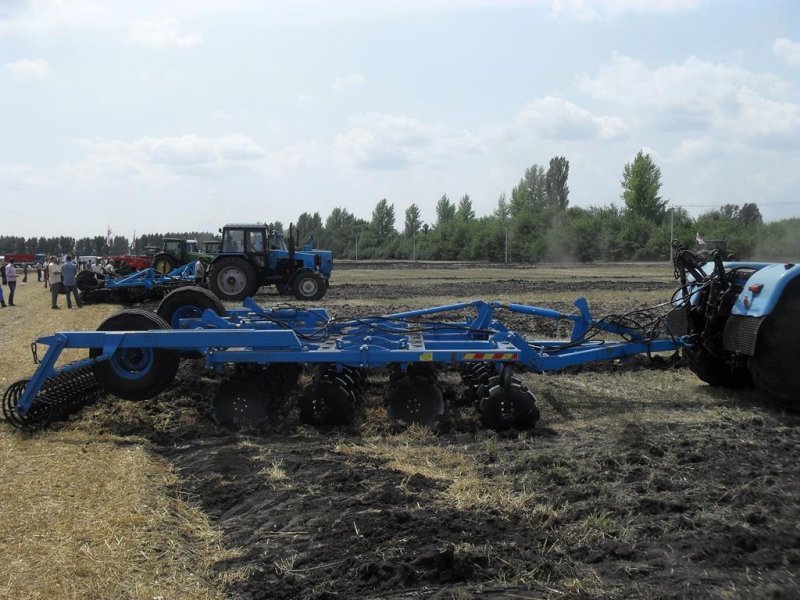

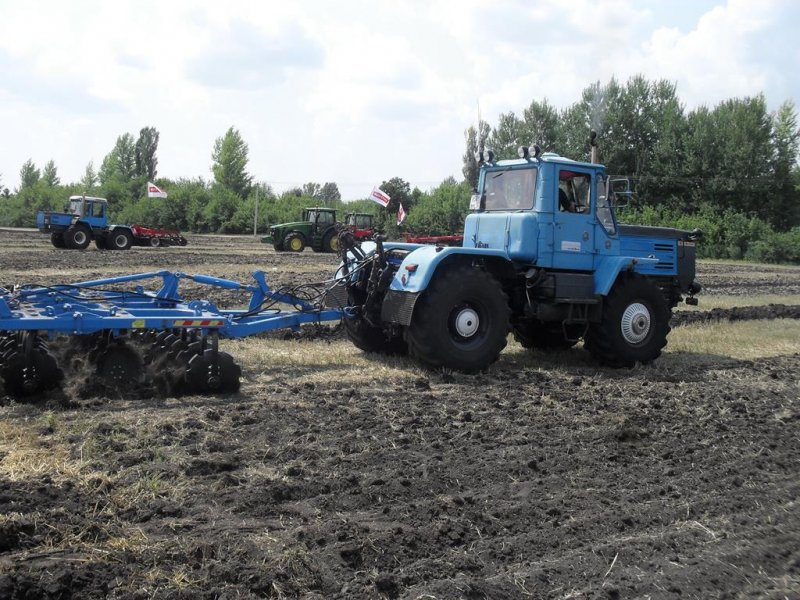

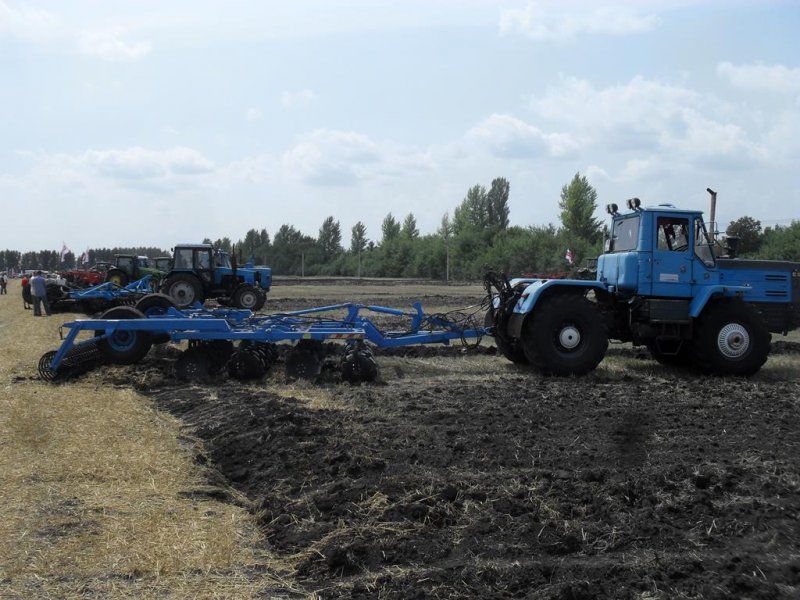

Disk harrow DANA BDP 4х4

Four-row disc harrow DANA BDP 4х4 can be called "the golden mean". It features the whole set of functions so valued in the heavy disc harrows while being quite compact.

If you need a wide-cut, high performance tool for tillage, and the tractor fleet does not have enough capacity for a very popular six-meter harrow, please consider the four-meter harrow DANA BDP 4x4. Its efficient design allows for reducing the traction power of a tractor, which means that a tractor with a capacity of up to 300 hp will be able to till a field.

The dealer service will help you prepare the harrow for use so that the farm can get the maximum benefit from its purchase.

MP series features

MP series features A disk tool with the bearing unit located on the convex disk side. Facilitates free passage of soil layer. Reduces the drag resistance of the harrow and, consequently, oil and fuel costs.

Technical Parameters

Performance per hour of operation, hectare/h)	up to 4,8
Operating speed, km/h	up to 12
Cut width, m	4
Weight, kg	3695
Tilling depth, cm	up to 15
Overall dimensions (in operative position), mm
Length	7000±210
Width	4306±130
Height	1420±43
Disc diameter, mm	560
Press wheel diameter, mm	530
Number of tools, pcs	40
Disk approach angle, deg.	0°-24°
Spacing, mm
between discs in a row	400
between disc rows	850
Service life, years	8

Soil cultivation quality indicators

Soil surface ridgeness, not more than (cm)	3
Soil crumbling, not more than (lump size not more than 25 mm) (%)	90
Shredding crop residues (%)	60
Burial of vegetable and crop residues (%)	98

Compatibility

280-300 hp:

MTZ 3022ДВ, К-744Р-05, К-424, К-744Р1,К-701,К-100А.

Ama discs

The harrow is equipped with a packing wheel and tools with Ama discs (Italy) with increased wear resistance.

Options

Can be equipped with different press wheels depending on soil type.

Helical press wheels are designed for light, dry soil They provide optimal soil crumbling, field surface leveling, and harrowing-out clipped weeds.
Cogged press wheels are designed for light and medium soil. Provide lump crushing, soil pressing and compacting, and field surface leveling.
Combined press wheels are designed for medium and heavy soil. Provide the creation of soil microrelief for sowing, optimal crumbling of the soil, crushing the lumps and combing the trimmed weeds.

Can be equipped with serviceable and maintenance-free bearing units.

Attention!

Soil characteristics: Specific resistance up to 0.09 MPa (0.9 kg/cm²), hardness up to 3.0 MPa (30kg/cm²), maximum humidity up to 25%, slope up to 10 grades.

Advantages of 4-Row DANA Disc Harrows

Increased cross-section of the frame pipes (150×100×6) made of high strength steel 09G2S.
Inter-row space increased to 900 mm. Clogging when working on wet and clogged soils is excluded.
Simple adjustment of the disc drift angle and the depth of tillage due to brace rods.
Discs installed on individual supports. Wrapping of plant residues on the tools is excluded.
Simple adjustment of the disc drift angle and the depth of tillage due to brace rods.
Increased strength of the bearing unit due to the increased size of the nut.
Self-sharpening of discs due to the double blade sharpening angle. Efficient grinding of plant residue.
Durable and ruggedized polymer coating.
Imported hydraulic system components. Uninterrupted operation and compatibility with imported tractors is ensured.
Supplied with the following rollers depending on the soil type: spiral, combined, crumbler.
