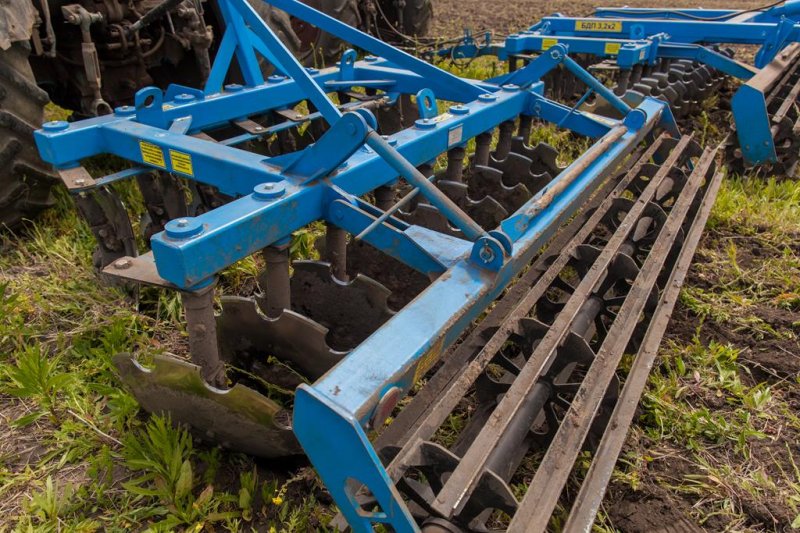

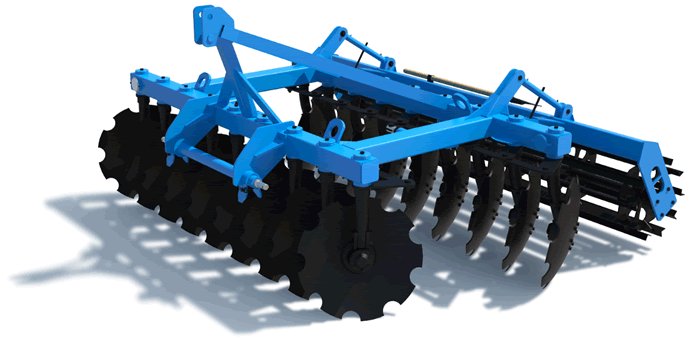

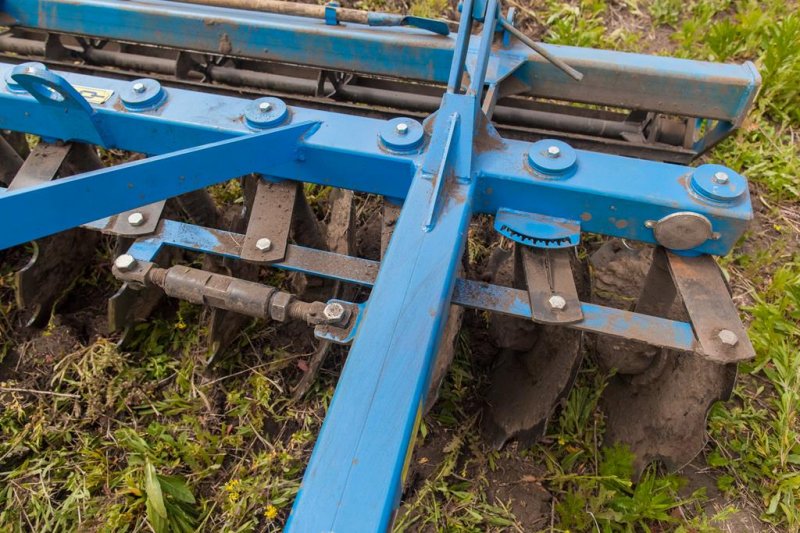

Mounted disk harrow DANA BDN-2,4×2

Price request

Mounted two-row disk harrow DANA BDN-2.4×2 is designed for resource-saving preplanting cultivation and main tillage to a depth of 8 to 15 cm for cereals, industrial and forage crops, weed destruction, shredding crop residues, rejuvenating meadows and pastures.

Technical Parameters

Performance per hour of operation, hectare/h)	up to 2,88
Operating speed, km/h	от 8 до 12
Cut width, m	2,4±0,12
Weight, kg	1034±30
Tilling depth, cm	up to 12
Overall dimensions (in operative position), mm
Length	2159±65
Width	2579±80
Height	1325±40
Disc diameter, mm	560
Press wheel diameter, mm	435
Number of tools, pcs	18
Disk approach angle, deg.	0°—30°
Spacing, mm
between discs in a row	250
between disc rows	950
Service life, years	8

Soil cultivation quality indicators

Soil surface ridgeness, not more than (cm)	3
Soil crumbling, not more than (lump size not more than 25 mm) (%)	90
Shredding crop residues (%)	60
Burial of vegetable and crop residues (%)	90

Compatibility

With agricultural tractors, equipped with counterweights (tractor engine power 80 hp):

MTZ-80, MTZ-82.

Options

Advantages of 2-Row DANA Disc Harrows



•
•
•
•
•
•
•

КФХ Федосеев, Алтайский край, Александр Федорович Федосеев, о DANA 2,4×2:

Двухрядная борона у нас работает нормально, вопросов не было. Дискуем поля, 500 гектар в прошлом году, сейчас она в поле работает. Поломок не было, ломаться там нечему, если только сам чего-нибудь не замудришь.
