| Coupling method | навесной |
| Performance per hour of operation, hectare/h) | up to 0,995 |
| Operating speed, km/h | up to 9 |
| Cut width, m | 1,05 |
| Weight, kg | 454±3% |
| Tilling depth, cm | up to 30 |
| Overall dimensions (in operative position), mm | |
| Length | 2730±100 |
| Width | 1370±30 |
| Height | 1200±30 |
| Distance from the base plane to the lower plane of the frame, not less, mm | 620 |
| Number of tools, pcs | 3 |
| Colter treatment depth, cm | up to 12 |
| Service life, years | 8 |
80-100 hp
MTZ-80, MTZ-82
Attention!
Soil Requirements: soils free of stones, flagstone and other obstacles, having a specific resistance up to 0.12 MPa (1.2 kg/cm2), hardness up to 4 MPa (40 kg/cm2) and humidity up to 22%.
Polymer coating, resistant to environmental loads.
Wear resistance of tools. All parts are made of high strength steel.
Durable assembly. Possibility to replace worn parts only.

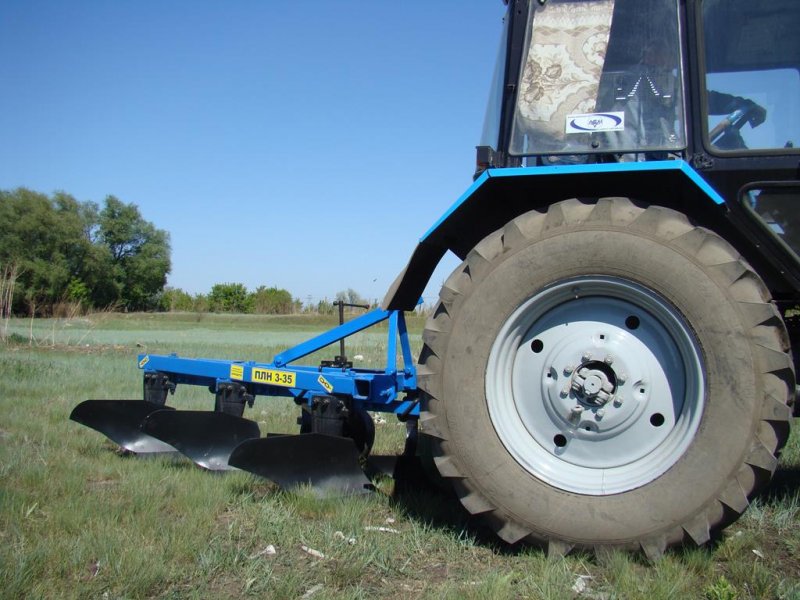

The coulter cuts a layer of soil and turns it over, dropping it to the bottom of the previous furrow. The result is a deep and full incorporation of weeds, vegetable and crop residues and crumbling of the bank.
Can be supplied with cast stands and a shoe.
Components are provided by the original manufacturer.
Reliable time-tested design. Simple assembly, operation and maintenance.
