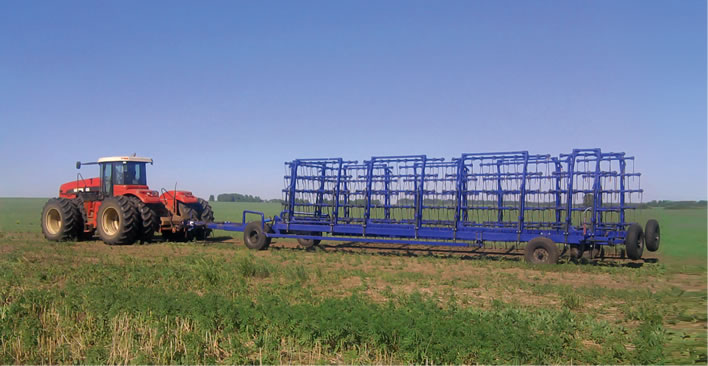

POBEDA heavy tooth hydraulic harrows

POBEDA heavy tooth hydraulic harrows are intended for:

• conservation of soil moisture during early spring harrowing;
• working-in of mineral fertilizers and plant residues;
• distribution of crop residues over the field surface;
• provoking of early shoots of annual weeds.

Pobeda is a heavy all-purpose harrow. It is used in early spring when soil field maturity is reached, and in autumn for the distribution of crop residues. The large width of the harrow allows to cultivate up to 400 hectares per day.

Pobeda harrow advantages

•

  Sections are arranged on the frame using spring rods, which are made of 60С2А steel 40…45 HRC, for better soil contour following.

•

  To perform different operations, six teeth positions with different attack angles are provided.

•

  Four turnbuckles are provided to facilitate fast and precise adjustment of tooth penetration depth by one person without the use of lifting equipment.

•

  All swivels are greased through special channels, all rotation axes and screws are hardened by heat treatment or oxicarbonitration method.

•

  The frame is made of 200×200×10 mm beam, that is why its rigidity increased by 25%.

•

  Wear resistance of spring teeth is increased 1.5 times due to combined heat treatment.

Teeth advantages

Wear resistance of spring teeth is increased 1.5 times due to combined heat treatment:

1. Tooth spring 38…42 HRC retains spring properties and in the conditions of vibration provides 100% overlap of soil cultivated.
2. Hardness of a tooth working part: L=200mm, 52…55 HRC.

Tooth material — 60С2А steel.

Teeth are fastened with special forged bolts, the advantage of such bolt is high strength and free tooth fitting. Material — 45 steel, 32…36 HRC. It prevents the bolt from shearing and wear-off.

Specifications

Наименование показателя		БЗГТ-9	БЗГТ-15	БЗГТ-19	БЗГТ-21	БЗГТ-25
Harrow weight (kg)		2570	5170	6100	6500	7300
Harrow sections quantity (pcs) large/small	large	-	5	5	7	7
	small	5	-	2	-	2
Harrow sections weight (kg) large/small	large	-	328	328	328	328
	small	164	-	225	-	225
Working position	Length, m	7,1	9	9	9	9
	Width, m	9,1	15,9	19,5	22	25,7
	Height, m	1,37	1,56	1,56	1,56	1,56
Road gear	Length, m	5,0	13,1	14,9	16,1	18
	Width, m	3,0	4,4	4,4	4,4	4,4
	Height, m	3,1	3,22	3,22	3,22	3,22
Travelling speed, (km/h)		30	30	30	30	30
Operating speed (km/h)		16-19	18-19	18-19	18-19	18-19
Performance per hour of processing time (hectare / h)		9-12	15-23	18-28	21-32	25-36
Tooth lack of perpendicularity, °		5-60	5-60	5-60	5-60	5-60
Tools quantity (coupled springteeth) (pcs.)		60	125	155	175	205
Step of longitudinal rows of teeth (cm)		76	60	60	60	60
Tillage depth (cm)		4…12	4…12	4…12	4…12	4…12
Tooth length from axis (mm)		660	660	660	660	660
Tooth thickness (mm)		14	14	14	14	14
Mountability (tractor engine power, horsepower hp)		110-150	150-200	180-250	200-300	300-400

Warranty

The warranty for Pobeda hydraulic tooth harrow is 1 year from the date of putting into operation.
