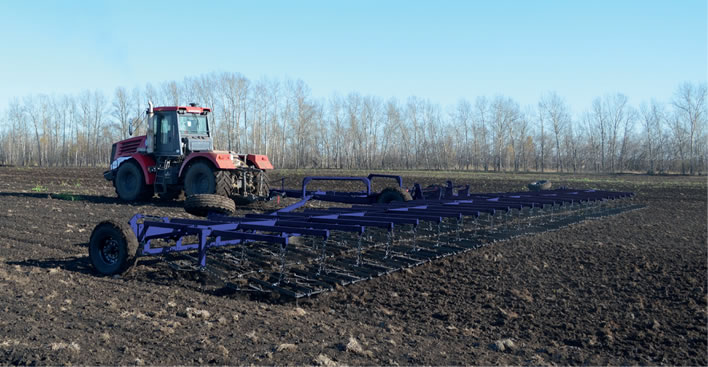

ZARYA hydraulic harrow hitch

Zarya hydraulic harrow hitch with 16/22/26 m grab width.

ZARYA hydraulic harrow hitch

It is intended for:

  • conservation of soil moisture during early spring harrowing with simultaneous distribution of crop residues;
  • fallow soil treatment;
  • surface soil layer (up to 8 cm) cultivation;
  • soil leveling;
  • destruction of seedlings and shoots of weeds;
  • working-in of fertilizers.
  • soil lump grinding.

The original design allows quick and easy change from working mode to transport mode and vice versa without disassembly. The preparation of Zarya hydraulic harrow hitch for operation or transportation takes no more than five minutes and can be performed by one machine operator.

The harrow hitch is designed to work with all soils (except stony soils) and climates of Russia.

Advantages

  • The frame is made of 200×200×10 mm beam

    The frame is made of 200×200×10 mm beam, for greater reliability and lateral rigidity.

  • It can work at lower speeds with the lesser load applied to tractor

    It can work at lower speeds with the lesser load applied to tractor.

  • Adjustment by connecting chains

    Adjustment by connecting chains ensures the same depth of soil cultivation by front and rear teeth.

  • A large number of points where the working body contacts the ground

    A large number of points where the working body contacts the ground provides uniform crushing of lumps.

  • A staggered-order arrangement of harrows

    A staggered-order arrangement of harrows provides uniform cultivation of soil.

  • Uniform penetration depth

    Uniform penetration depth: wings are always parallel due to lever support fixation of wings.

  • Cable-free design

    Cable-free design provides reverse movement in working mode.

Specifications

Наименование показателя СБГ-16-2 СБГ-22-2 СБГ-26-2
Mounting method Trailing
Performance per hour of processing time (hectare / h) 19,2 26,4 30
Operating speed (km/h) 12
Working width, m 16 22 26
Tillage depth (cm) 8
Tooth quantity (pcs.) 620 860 1020
BZS harrows quantity in the first row (pcs.) 15 21 25
BZS harrows quantity in the second row (pcs.) 16 22 26
Harrow weight (kg) 5675 6960 7750
Mountability (tractor engine power, horsepower hp) от 200 от 300 от 375

Warranty

The warranty for Zarya hydraulic harrow hitch is 1 year from the date of putting into operation.
