Subsurface plow
STAVR PG-5^new!

Price request

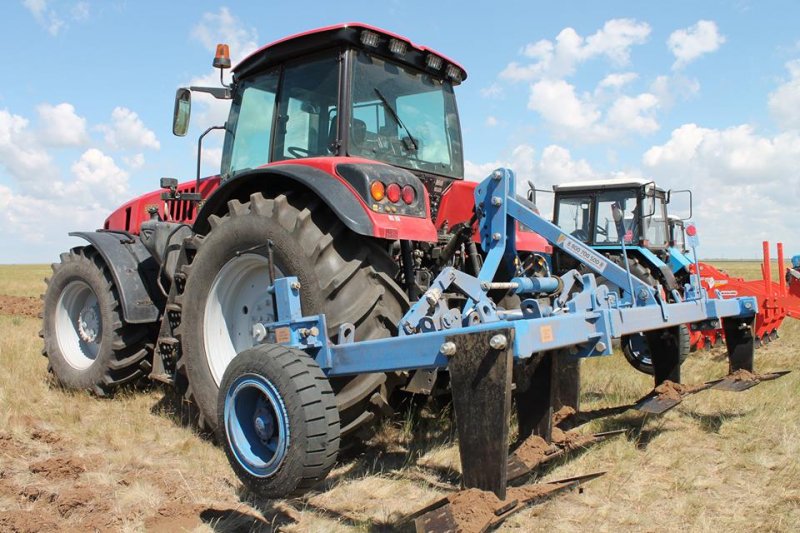

Subsurface plow STAVR PG-5 is designed for the primary cultivation of fallow lands, autumn tillage with maximum preservation of stubble and other crop residues on the field surface after cereal and hoed forecrop in order to prevent soil aeolation.

The STAVR PG-5 plow completely cuts up weed roots to a depth of 15-30 cm, so that the stubble remaining on the field surface retains the snow and protects the soil from blowing and washing away, facilitates moisture accumulation.

Advantages of the subsurface plow STAVR PG-5:

• Two types of hitches are available: – for attachment to K-744 tractors; – for attachment to foreign-made tractors;
• Tools consisting of two angled plowshares and chisels perform complete weeding, loosen the soil with maximum stubble preservation.
• Prevents soil aeolation (due to snow retention).
• Plowshares and chisels are coated with hard alloy to improve wear resistance.
• Convenient for transportation. Switched to the transport position using a hydraulic system.
• Adjustable tool Adjustable approach (drift) angle when working on solid soils.
• Simple design and adjustment.

Soil free of stones, flagstone and other obstacles, having a specific resistance of 0.9 kg/cm² (0.09.MPa), hardness up to 30 kg/cm² (3.0 MPa) and humidity up to 22%, may be tilled to the depth of 15 to 30 cm.

Technical Parameters

Coupling method	Навесной
Performance per hour of operation, hectare/h)	up to 5,3
Tilling depth, cm	15…30
Operating speed, km/h	up to 10
Габаритные размеры, мм
– length	1678
– width	5300
– height	1952
Количество рабочих органов
– левых	3
– правых	2
Тип рабочего органа	Стрельчатый
Cut width, m	5,3
Weight, kg	1673
Service life, years	8

Compatibility

250-300 hp:

К-701, К-424, К-744Р1, К-704Р2



•
•
•
•
•
