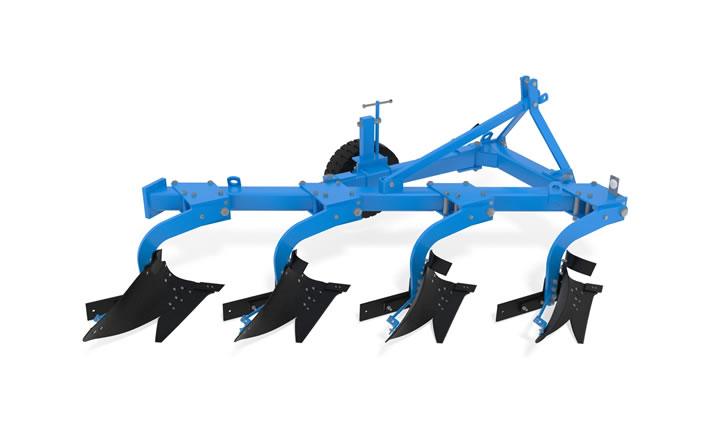

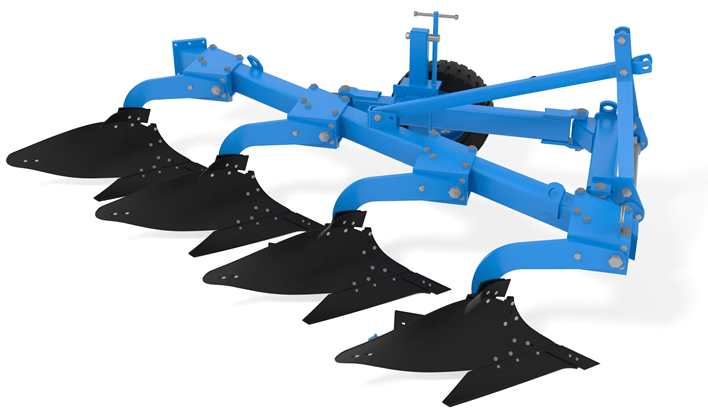

Mounted plow FINIST PNG-4-50K

Mounted plow FINIST PNG-4-50K is designed for plowing soils free of stones, flagstone and other obstacles to a depth of 30 cm, for grain and industrial crops.

Technical Parameters

Coupling method	навесной
Performance per hour of operation, hectare/h)	2,7
Tilling depth, cm	up to 35
Operating speed, km/h	up to 11
Transport speed, km/h	up to 15
Number of tools, pcs	4
Cut width, m	2
Width захвата рабочего органа (мм)	500
Overall dimensions in operative position, mm:
— length	3970
— width	2590
— height	1475
Tool protection	срезной болт
Weight, kg	1112
Body type	универсальный
Service life, years	8

Compatibility

200…300 hp.: BELARUS-1523 with NU-3, KhTZ-17221, KhTZ-17021, John Deere 6930SE, Case-180 etc.

Advantages of the FINIST PNG-4-50K Share Plow

Clogging with crop residues is excluded: clearance between the body and the frame is increased from 620 to 650 mm, the bodies are moved from under the frame to the right, and a spinning stilt is installed instead of a straight one.
Original bodies with multipurpose 50 cmwide moldboards ensure good crumbling and overturning of soil.
Equipped with fins which perform the function of a coulter and put the soil layer to the bottom of the furrow.
Durable design: a frame is made of steel 09G2S, 150×150×12.
Simple mounting on tractors with a European fixture — additionally supplied with a reducer and fixture stilts.
A shear bolt protects the tools from any damage.
Increased performance due to a greater working width of the plow and a possibility to use it with energy-packed tractors.
